CNC Milling Machine MECOF CS 500 Agile - HEIDENHAIN TNC 530

Sold

CNC Milling Machine MECOF CS 500 Agile - HEIDENHAIN TNC 530

Location:Lonate Pozzolo, Italy

Description

CNC Travel Column Milling Machine MECOF CS 500 Agile - 4.000 rpm, Index Head TBA4, capacity 10000x1700x1000 mm, CNC HEIDENHAIN TNC 530

Specifications

ManufacturerMECOF
ModelCS 500 Agile
Year1996
ConditionUsed
Stock NumberFR316
Working table size11300x1090 mm
Longitudinal travel x axis10000 mm
Cross travel y axis1000 mm
Vertical travel z axis1700 mm
Working feed x-y-z axes0 - 20.000 mm/1'
Rapid feed x-y-z axes20.000 mm/1'
Spindle speed0 - 4000 rpm
Spindle motor power s625 Kw
Spindle taper50 DIN69871
Automatic tools change number61 positions

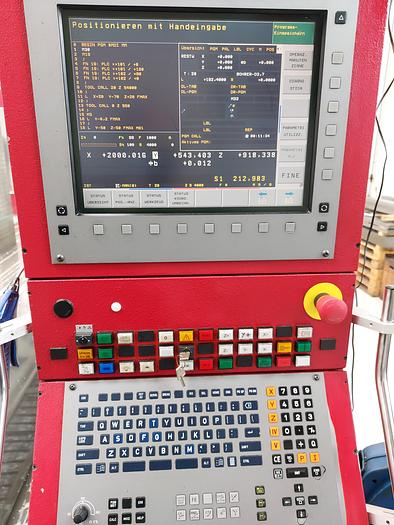

CncHEIDENHAIN TNC 530

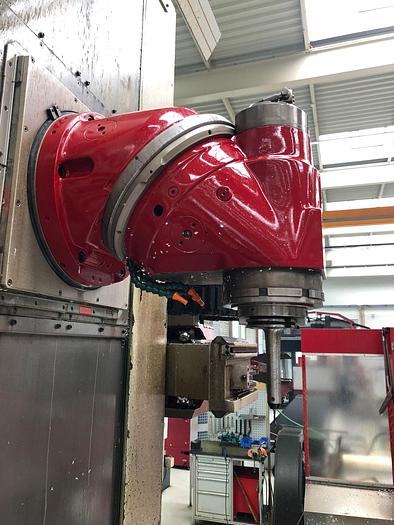

AccessoriesAutomatic Index Head TBA4, chip conveyor, coolant thrugh spindle, ATC 61 positions

Additional Features

Information about technical data are not binding.
Machine available subject to prior sale.
