Boring Machine SAN ROCCO FMC 110 S CNC - HEIDENHAIN TNC 426
Boring Machine SAN ROCCO FMC 110 S CNC - HEIDENHAIN TNC 426
Contact us for price
Location:Lonate Pozzolo, Italy
Description

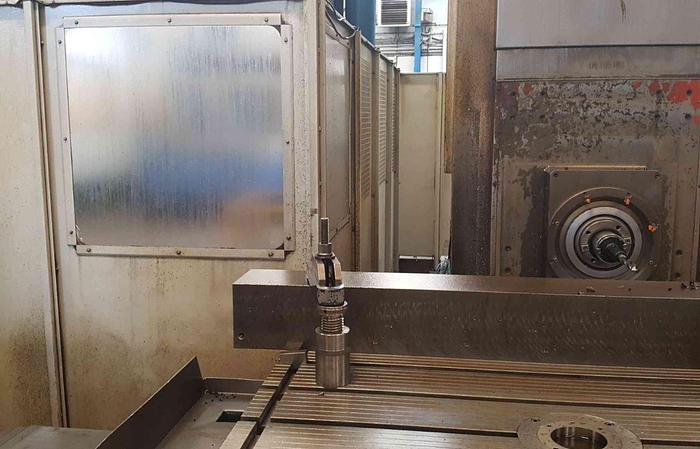

T-Type Boring Machine SAN ROCCO - FMC 110 CNC - Spindle Ø 110 mm, capacity 2100x1600x1600+600 mm - CNC HEIDENHAIN TNC 426
Specifications
| Manufacturer | SAN ROCCO |
| Model | FMC 110 S |
| Year | 1997 |
| Condition | Used |
| Stock Number | AL057 |

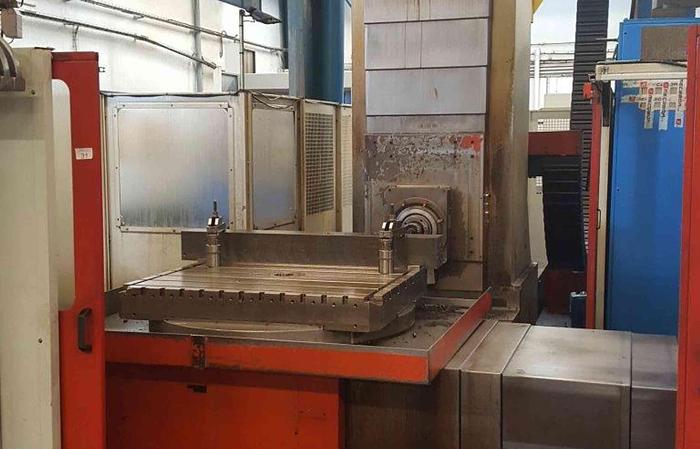

| Rotary table dimension | 1300x1100 mm |
| Maximum table load | 3.000 Kg |
| Cross travel x axis | 2100 mm |
| Vertical travel y axis | 1600 mm |
| Longitudinal travel z axis | 1600 mm |
| Longitudinal spindle travel w axis | 550 mm |
| Working feed x-y-w axes | 2 - 10.000 mm/1' |
| Rapid feed x-y-w axes | 10.000 mm/1' |
| Spindle taper | 50-DIN2080 ISO |
| Spindle speed | 5 - 3000 rpm |
| Number of spindle speeds | 2 |
| Spindle motor power | 25 Kw |

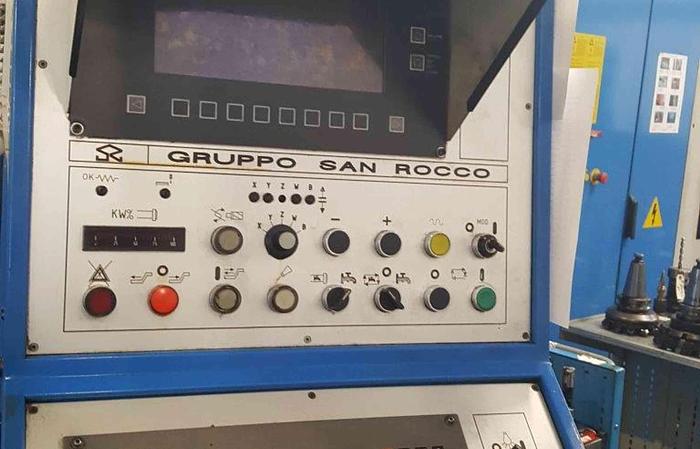

| Cnc | HEIDENHAIN TNC 426 CA |
| Weight | 17.000 Kg |

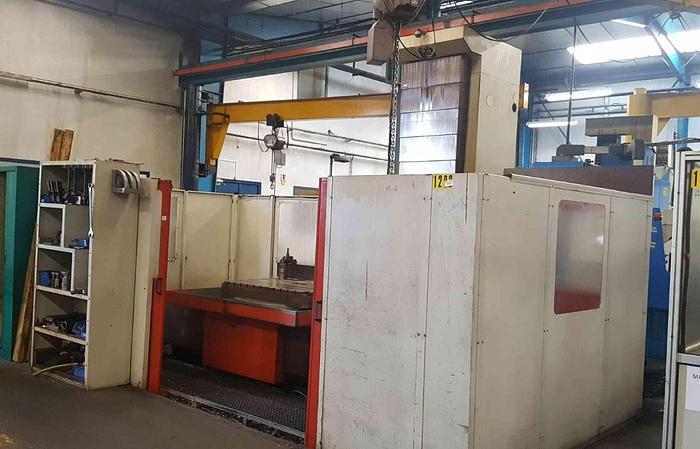

| Accessories | Coolant thrugh spindle, external perimeter guard, CE Mark |
Additional Features
Information about technical data are not binding.
Machine available subject to prior sale.
