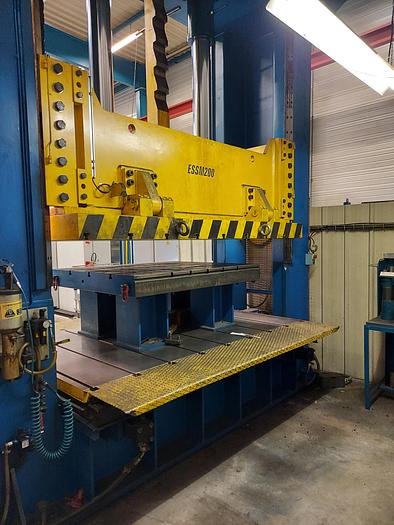

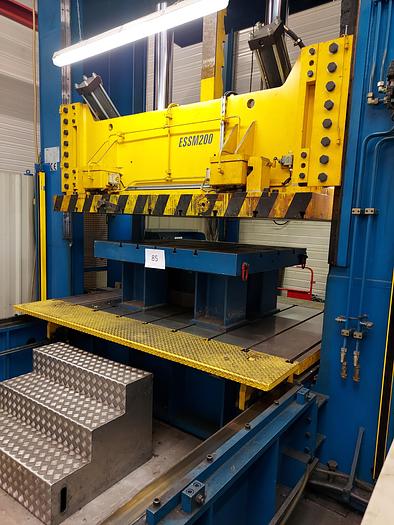

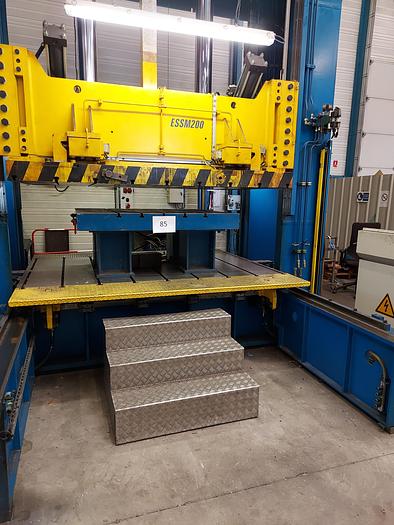

Die Spotting press LOIRE SAFE ESSM 200/25
Die Spotting press LOIRE SAFE ESSM 200/25
Contact us for price
Location:Lonate Pozzolo, Italy
Description
Die Spotting press LOIRE SAFE ESSM 200/25, max capacity 2000 Kn, Table 2500x1500 mm
Specifications
| Manufacturer | LOIRE SAFE |
| Model | ESSM 200/25 |
| Year | 2001 |
| Condition | Used |
| Stock Number | PR104 |
| Maximum force, adjustable | 200 - 2000 Kn |
| Maximum daylight between lower table and ram | 2000 mm |
| Ram stroke | 1600 mm |
| RAM dimension | 2500x1500 mm |
| Maximum load in the ram | 9.000 kg |
| Upper ram plate tilting | 110° |
| Lower table dimension | 2500x1500 mm |
| Maximum load in the lower table | 18.000 kg |
| Front moving plate stroke | 1500 mm |
| RAM speed approach | 2 - 8 mm/s |
| RAM speed working | 40 mm/s |
| Electrical power main group | 15 Kw |
Additional Features
Information about technical data are not binding.
Machine available subject to prior sale
